Middle inertia

             다양한 V 시리즈 표준 모터 라인 업



                   ◆ Time rating : Continuous    ◆ Class of insulation : F       ◆ Ambient temperature : -10~+40℃

                   ◆ Class of vibration : V15    ◆ Method of excitation : Permanent magnet

                   ◆ Method of protection : IP65    ◆ Mounting method : Flange mounted type

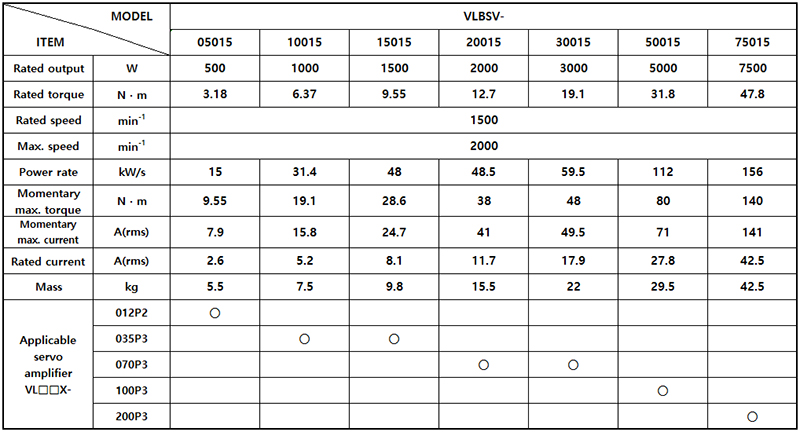

                    ◎ 정격 1500 RPM

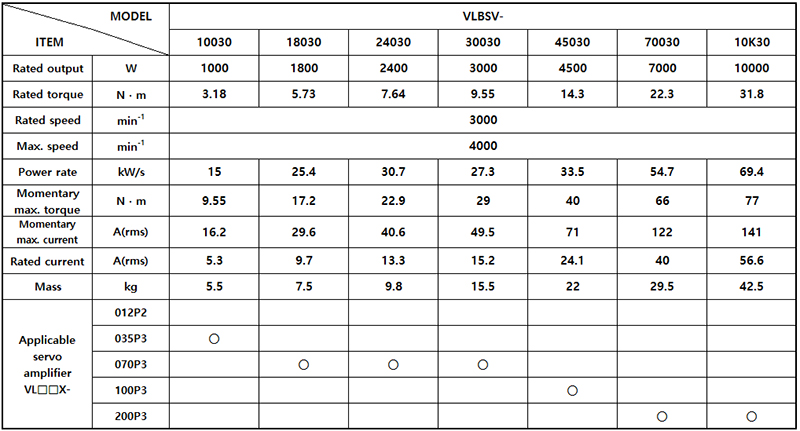

                    ◎ 정격 3000 RPM
